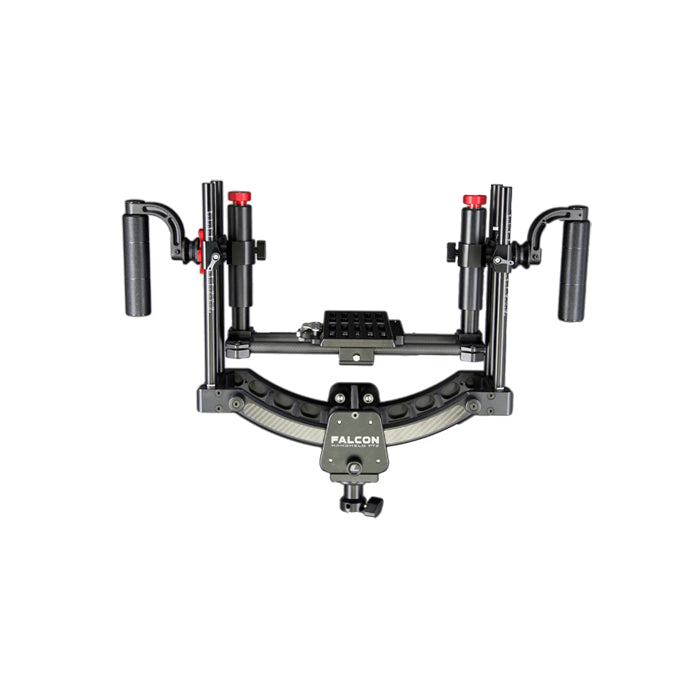

Falcon PTZ (HANDHELD PTZ) Steadicam handheld camera PTZ, handheld gimbal

  FALCON PTZ combines the advantages of Steadicam. The
handheld mode is more flexible, direct, fast and precise than
Steadicam to control the camera. You can shoot fast and slow
works as you like, and have a better sense of lens breathing.
    FALCON PTZ is a new type of three-axis zero-gravity gimbal
designed for handheld shooting. It has three free angles of pan,
tilt and roll axis, the flexibility of handheld control mode and the
stability of the Steadicam arm, but the load is only half of
Steadicam.you can also choose the Easyrig hanger method to
make   shooting creation more convenient.

Features:
 1. Zero-gravity gimbal control precision
 2. Three-axis motion isolation, can independently
    control the translation,tilt, and roll axis
 3. Adapt to large cameras
 4. Seamless switching between mobile shooting and
     fixed-camera shooting
 5. Reduced physical fatigue
 6. Simple and convenient installation and debugging
 7. Standard interface 5/8 suitable for all Steadicam
 8. Steadicam arm and hoisting modes can be used

PACKING LIST:
 ( 1 ) Handhels PTZ
（1）Adjusting bracket
（1）Bottom Dovetail Plate
（1）Ring
（1）Arm post adapter
（1）T-type spanner
（1）Spare screw
（2/2）Friction damping plate   （white/black）
 ( 1 ) Protective box

DATA:

Camera payload:	Up to 35kg/77 lbs.
Pan:	360°
Tilt:	90° (based on camera length)
Roll:	25° from center
Mounting:   Mounting plate:	5/8” (PRO), 3/4” (Tiffen) arm posts with adapter sleeveor any 5/8" pin ARRI Bottom Dovetail Plate(K2.0015896)



Dimensions:	600mm x 450mm x 195mm
Weight	11 .4 lbs/5.2 kg

Package :           570mm x 465mm x 235mm

Gross weight:     12kg

Locking Brakes:	Pan
Center Position Locking Plunger:	Roll & tilt
Damping adjustment and brake:	On tilt
Drop rate adjustment:	In the work, the center of gravity can be adjusted up and down
Cradle and pan base:	Invertable with docking station
Handle Grips:	Re-orientable
Handles:	Removable & interchangable with knobs included
